ATUL Air Atomizing Nozzles

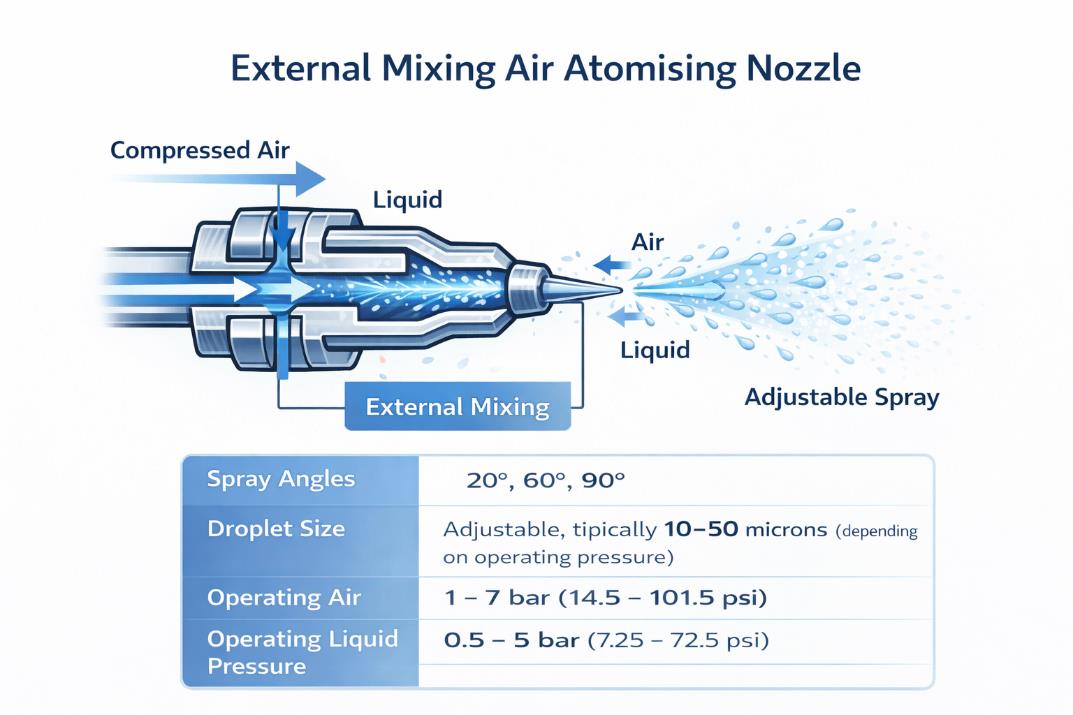

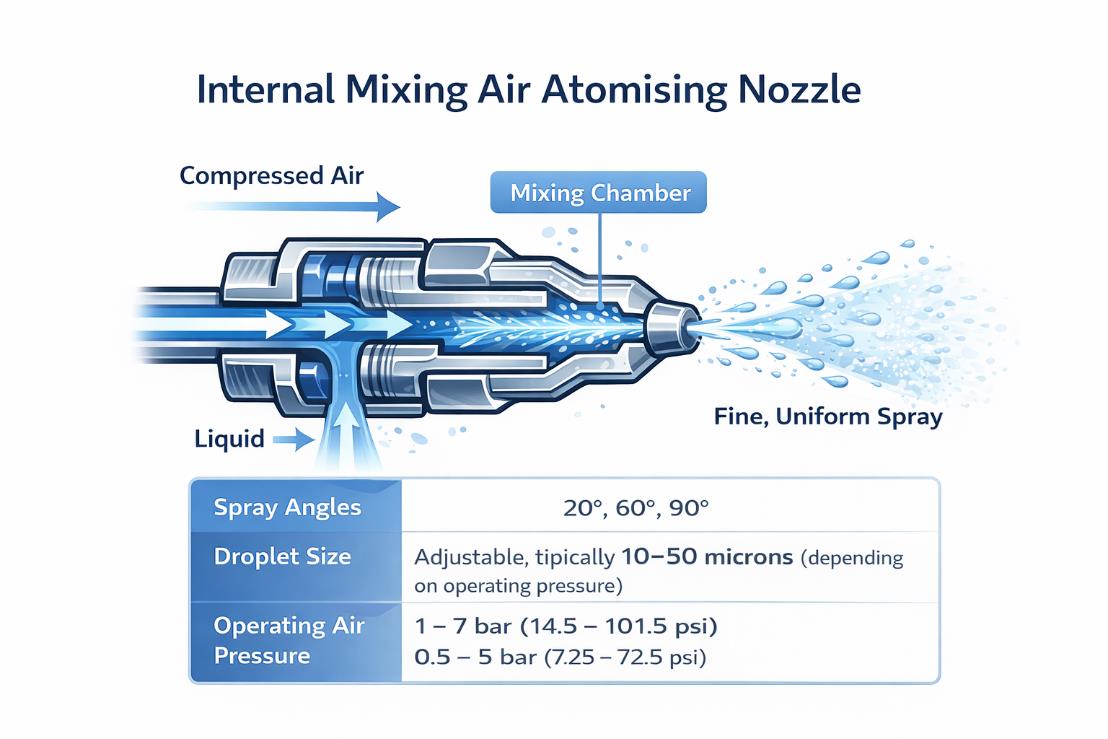

ATUL Air Atomizing Nozzles are engineered for precise misting in industrial applications. These nozzles operate by mixing compressed air with liquid feed under controlled conditions to produce a finely atomized spray with uniform droplet size distribution.
Utilizing advanced atomizing technology, the droplet size can be accurately adjusted by regulating air and liquid pressure, enabling optimal control over spray characteristics. ATUL Nozzles are available with selectable spray angles of 20°, 60°, and 90°, allowing for customized coverage and moisture application according to process requirements.
Constructed for consistent performance in demanding environments, ATUL Air Atomizing Nozzles are suitable for critical applications in pharmaceuticals, metallurgy, and food and beverage industries, where precise mist quality and reliable operation are essential.
Specifications:
| Parameter | Specification |
|---|---|
| Spray Angles | 20°, 60°, 90° |
| Droplet Size | Adjustable, typically 10–50 microns (depending on operating pressure) |
| Operating Air Pressure | 1–7 bar (14.5–101.5 psi) |
| Operating Liquid Pressure | 0.5–5 bar (7.25–72.5 psi) |
| Materials | Stainless steel or corrosion-resistant alloys (application dependent) |
| Connection Type | Standard industrial fittings |
| Flow Rate | Variable, depending on nozzle size and operating parameters |
| Temperature Range | Suitable for liquids up to 80°C (176°F) |
These specifications ensure optimal atomization performance, durability, and adaptability to diverse industrial process requirements.
SPRAY PATTERN
